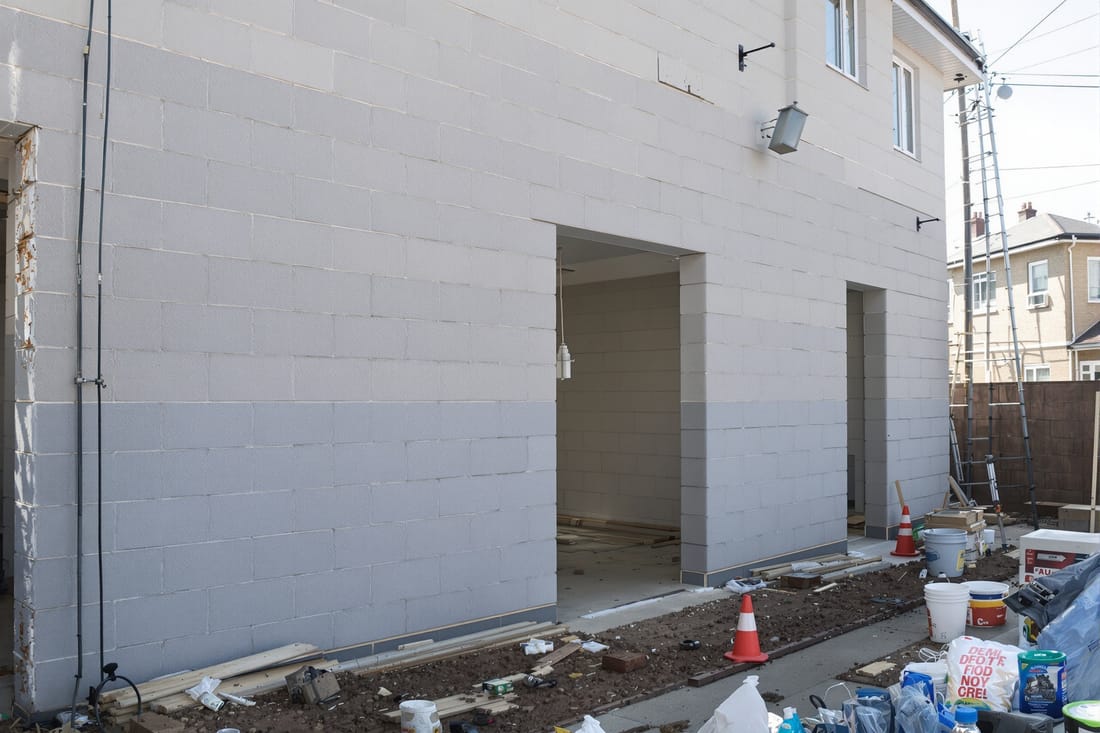

Structural Masonry and Block Walls in Pittsburgh, PA

We build structural masonry and block walls in Pittsburgh, PA for commercial and industrial projects. Our crews install CMU load bearing walls, shear walls, and demising walls according to engineered drawings. We coordinate layout, reinforcement, and embeds so your structure is accurate and ready for follow on trades.

Legendary Masonry Pittsburgh provides professional structural masonry throughout Pittsburgh, PA, Pennsylvania and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 412-212-2476 or request your free quote.

Structural Masonry Built for Pittsburgh Conditions

Structural masonry is more than just stacked block. On a Pittsburgh property it is a load‑bearing system that has to handle heavy snow, freeze‑thaw cycles, and steep hillsides. At Legendary Masonry Pittsburgh, we design and build structural masonry and block walls that support floors, roofs, garages, and retaining systems, not just close in a space.

When we visit your home or commercial site, we start by identifying what the wall actually needs to carry: a single floor, multiple stories, a driveway, or a hillside. We look at existing foundations, drainage patterns, and nearby structures. In older Pittsburgh neighborhoods like Lawrenceville, Bloomfield, and the South Side, we pay close attention to how new structural masonry will tie into 100‑year‑old brick or stone. In newer suburbs like Cranberry or Robinson, we focus on coordinating with modern framing and insulation details so you do not get cold spots or water issues where masonry meets wood framing.

How We Plan a Structural Masonry or Block Wall Project

Our process is structured so you know what is happening at every stage and so the finished wall actually does the structural job it was supposed to do.

1. Site and structural review: We inspect the existing foundation, soil, and framing. If there are engineering plans, we follow them. If not, for more complex projects, we coordinate with a local structural engineer who understands Allegheny County code and typical soil conditions.

2. Layout and footing preparation: We mark the wall lines on the ground and check them against your survey and architectural plans. For load‑bearing block walls, we usually pour a concrete footing below frost depth (minimum 36 inches in this region, often deeper on exposed hillsides). We install rebar in the footing where future vertical bars will tie in.

3. Block selection and reinforcement plan: Based on height, load, and location, we specify standard CMU (concrete masonry units) in the correct thickness, usually 8 inch or 12 inch for structural walls, and determine which cells must be grouted solid and reinforced with steel.

4. Schedule and access plan: In tight Pittsburgh neighborhoods with narrow alleys or shared driveways, we create a material staging plan that keeps neighbors’ access open. For commercial sites, we coordinate around other trades so our structural work does not slow down framing, plumbing, or electrical.

Materials and Design Options for Structural Masonry

Structural masonry does not all look the same. Legendary Masonry Pittsburgh helps you choose materials that meet structural needs and still look right for your property.

For most load‑bearing walls, we use concrete block as the structural core. You can leave it exposed for basements, garages, and warehouses, or we can finish it with brick veneer, stone, or stucco. In many Pittsburgh basements, a common choice is an 8 inch structural CMU wall with insulation and a framed interior, which gives strength plus energy performance.

If you want a finished masonry appearance on the exterior, we often build a structural block wall, then add a brick or stone facing tied back with corrosion‑resistant anchors. This approach is durable in our freeze‑thaw climate and looks seamless on historic homes or commercial storefronts. We also design reinforced block retaining walls for driveways and yards, including weep holes, gravel backfill, and perforated drain tile so the wall is not pushed by saturated clay soils common on local hillsides.

We work with solid grout, vertical and horizontal rebar, bond beams, and lintel blocks so that openings for doors and windows remain strong. Where needed, we coordinate with steel columns or beams that can be hidden inside block cells to keep your interior open while the masonry carries the load.

Step‑by‑Step: How a Structural Masonry Wall Is Built

Once planning and permitting are complete, construction of your structural masonry or block wall follows a clear sequence.

First, we excavate to the required depth and width for the footing, then form and pour concrete with embedded rebar. After the footing cures, we snap precise layout lines, set corner blocks, and begin laying courses. Corners are built up first so the wall can be strung straight and level across each run.

We install vertical rebar in specified cells and place horizontal reinforcement such as ladder or truss wire at code‑required intervals. For fully or partially grouted walls, we place cleanouts at the base so grout fills properly. We then pump or pour structural grout in lifts, consolidating it to remove voids.

As we go, we integrate metal lintels or bond beam blocks above openings. For retaining walls or below‑grade walls, we apply waterproofing or damp‑proofing to the exterior face, install drainage board or fabric, and backfill with free‑draining gravel instead of clay. This step is crucial in Pittsburgh, where hillside and yard drainage can change quickly during storms.

Throughout the build, we check plumb, level, and alignment constantly, since even small errors can create problems once framing, siding, or interior finishes tie into the wall.

What Drives the Cost of Structural Masonry in Pittsburgh

Costs for structural masonry and block walls vary, but there are clear factors that influence your budget.

Height and thickness: Taller walls or those that must support heavy loads require thicker block, more grout, and denser reinforcement. For example, a 4 foot retaining wall behind a driveway is far simpler than a 10 foot basement wall that carries a first floor and roof.

Access and site conditions: In Pittsburgh, tight side yards, steep driveways, or limited truck access can increase labor because material has to be moved by hand or smaller equipment. Excavation in rocky soil or near existing foundations can also add time.

Drainage and waterproofing: Below‑grade structural masonry walls typically need waterproof coatings, drainage mat, and French drains. Hillside or against‑grade walls often need more extensive drainage systems, but they are critical if you want to avoid water in your basement or pressure pushing the wall.

Engineering and permits: Simple garage or partition walls may not require detailed engineering beyond code tables, but multi‑story support walls, large retaining walls, or structural changes to older brick homes often need stamped drawings. Legendary Masonry Pittsburgh can coordinate these services so you get accurate pricing upfront instead of surprise changes later.

Common Structural Masonry Problems We See Locally

Because we work across Pittsburgh and the surrounding suburbs, we see the same patterns of structural masonry issues again and again, especially in older homes.

Typical problems include horizontal cracking from soil pressure, step cracking near corners, bowing or leaning basement walls, and water intrusion through unsealed joints or poorly drained backfill. In river valley neighborhoods or on steep hills, we often find retaining walls that were built as simple dry stack or non‑reinforced block, which eventually start to tip or slide.

When we evaluate a problem wall, we look for signs of active movement, not just cosmetic cracks. We may recommend reinforcement with pilasters, interior bracing, new drainage, partial rebuilds, or complete reconstruction where the wall is structurally unsound. For settlement or serious movement, we work with engineers to design anchor systems or new foundations.

Legendary Masonry Pittsburgh focuses on solving the cause, not just patching the symptom. That might mean adding a new perimeter drain, improving downspout extensions, or regrading soil so water does not build up behind the wall again.

Why Work With a Local Structural Masonry Specialist

Structural masonry is permanent work that affects safety, resale value, and future renovation options. Working with a local specialist like Legendary Masonry Pittsburgh helps ensure your wall is designed for this region’s codes and real‑world conditions.

We understand Allegheny County inspections, local frost depths, and how Pittsburgh’s clay soils and steep hills affect wall design. We also know the common framing practices of local builders, which helps us tie new masonry into existing homes without creating cracks or leaks where materials meet.

When you contact us, we offer a site visit, discuss your goals, and explain in clear terms what is structurally required versus what is optional. You will receive a written scope that describes block size, reinforcement, drainage, waterproofing, and finishes, not a vague lump sum. Our crews arrive prepared, keep the site as clean as the work allows, and communicate schedule changes promptly, which matters when neighbors and shared access are involved.

If you are planning an addition, a new garage, a load‑bearing basement wall, or a structural retaining wall in Pittsburgh, PA, we are ready to help you design and build masonry that will still be sound decades from now.
